CS-534: Packet Switch Architecture

7. Output Scheduling for QoS


Subsections in the current document:

Reading: read Chapter 9, on "Scheduling", from the book: S. Keshav: "An Engineering Approach to Computer Networking", Addison Wesley, 1997, ISBN 0-201-63442-2.


7.1 introduction, Conservation Law, Scheduler Composition

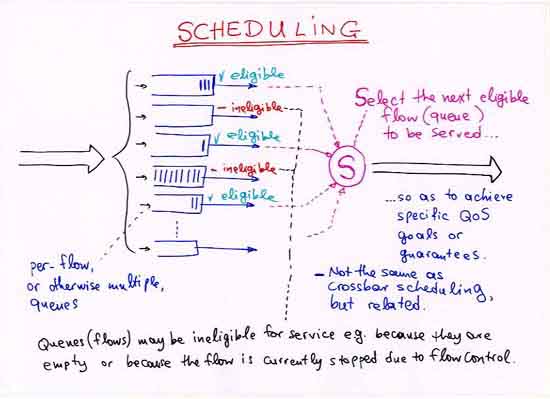

Scheduling: introduction

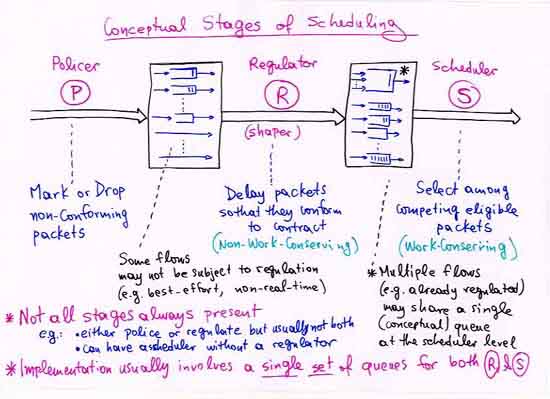

Conceptual Stages of Scheduling

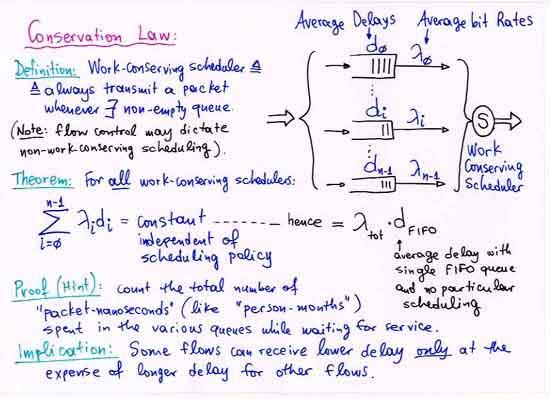

Conservation Law

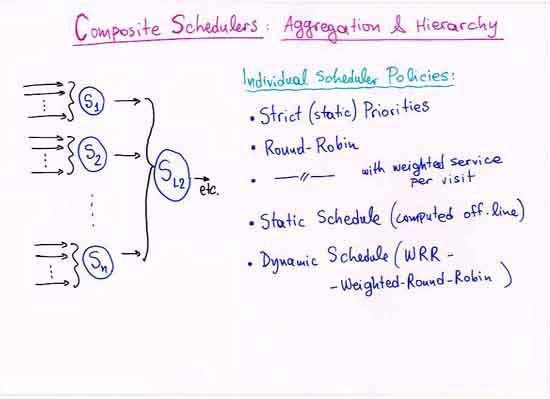

Composite Schedulers: Aggregation and Hierarchy


7.2 Strict (Static) Priority Scheduling

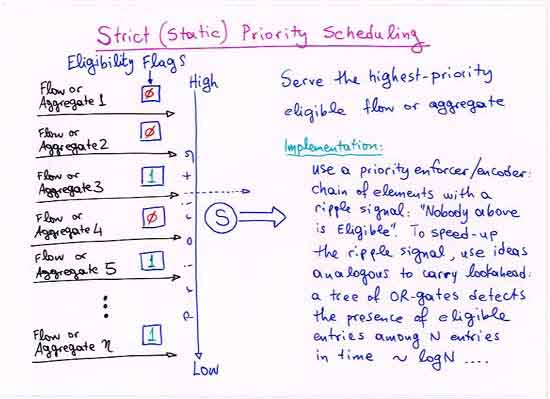

Strict (Static) Priority Scheduling

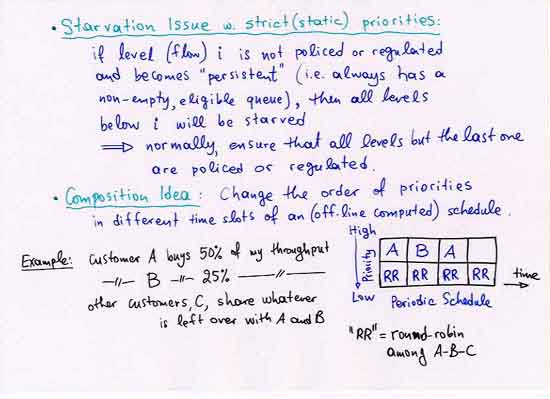

Starvation Issue with strict (static) priorities


7.3 Round Robin Scheduling


Round Robin Scheduling

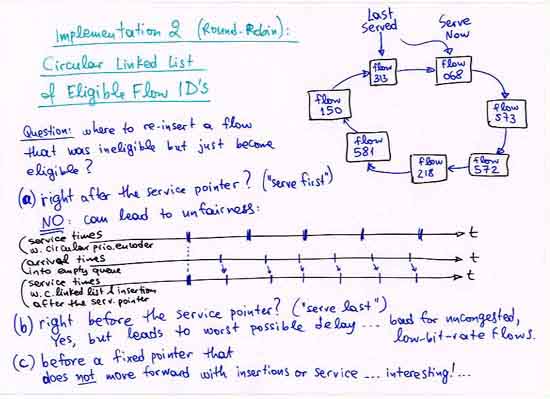

Circular Linked List of Eligible Flow ID's


7.4 Weighted Round Robin Scheduling

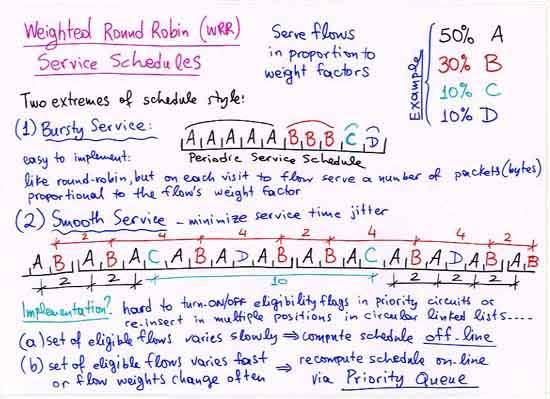

Weighted Round Robin Service Schedules

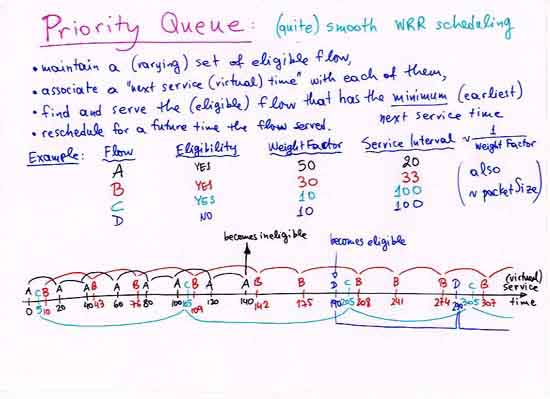

Priority Queue: (quite) smooth WRR scheduling

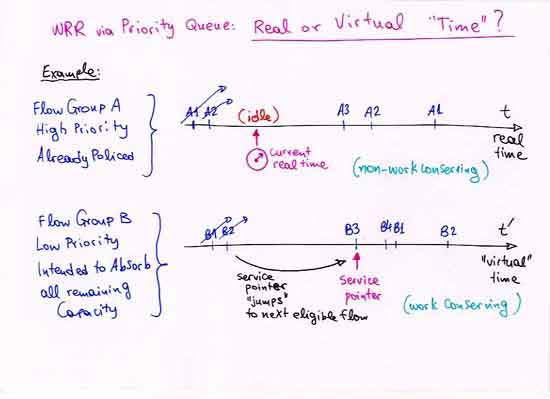

Real or Virtual Time?

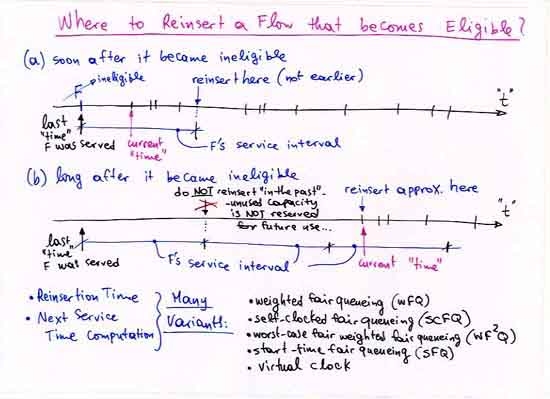

Where to Reinsert a Flow that becomes Eligible?

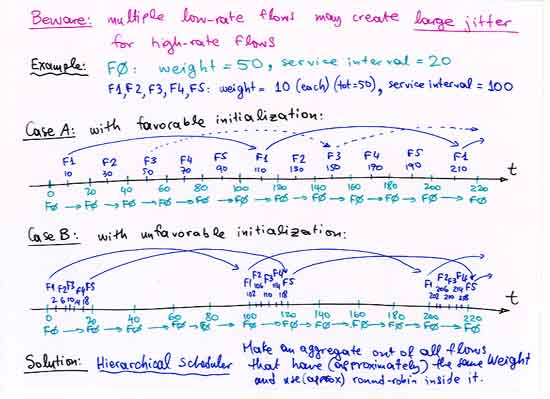

Beware: multiple low-rate flows may create large jitter for high-rate flows

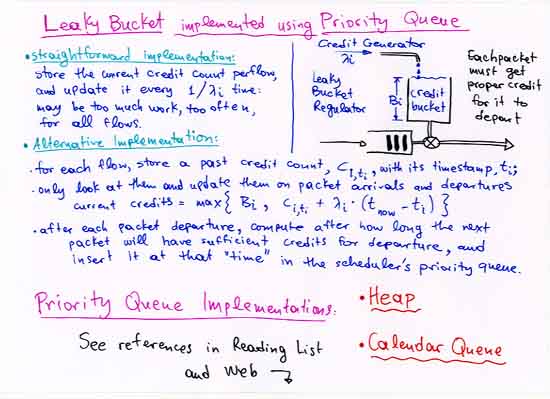

Leaky Bucket implemented using Priority Queue

Read the pages on Weighted Round-Robin Schedulers of the Computer Architecture and VLSI Systems Lab of ICS-FORTH.

For Calendar Queues, the primary reference is: R. Brown: "Calendar Queues: a Fast O(1) Priority Queue Implementation for the Simulation Event Set Problem", Communications of the ACM, vol. 31, no. 10, Oct. 1988, pp. 1220-1227.
